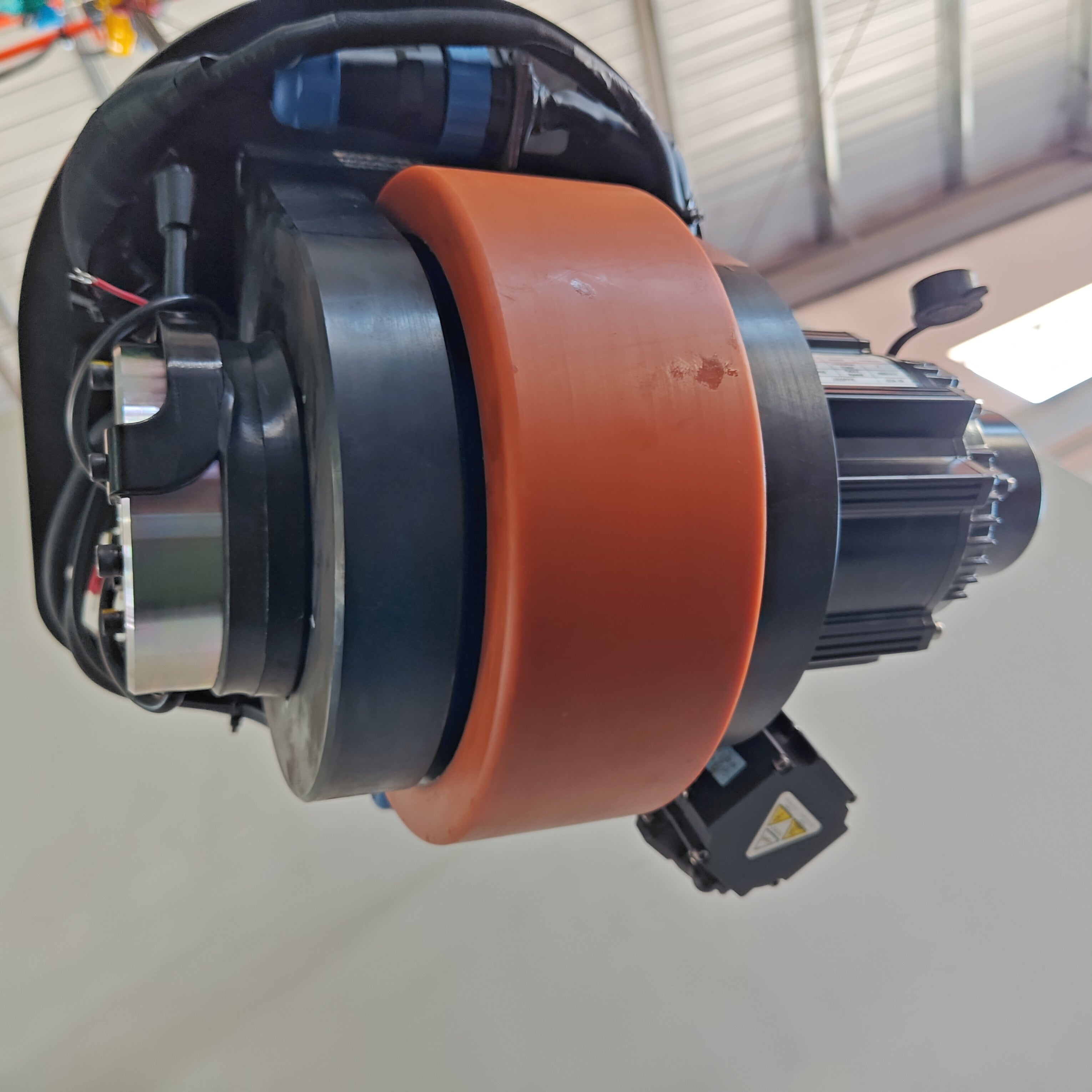

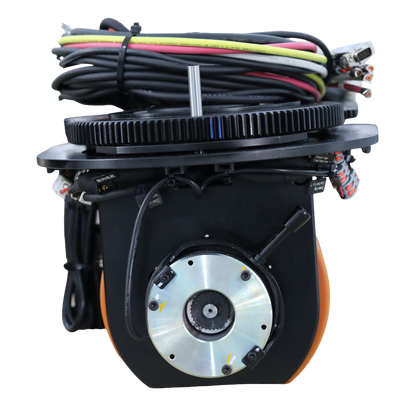

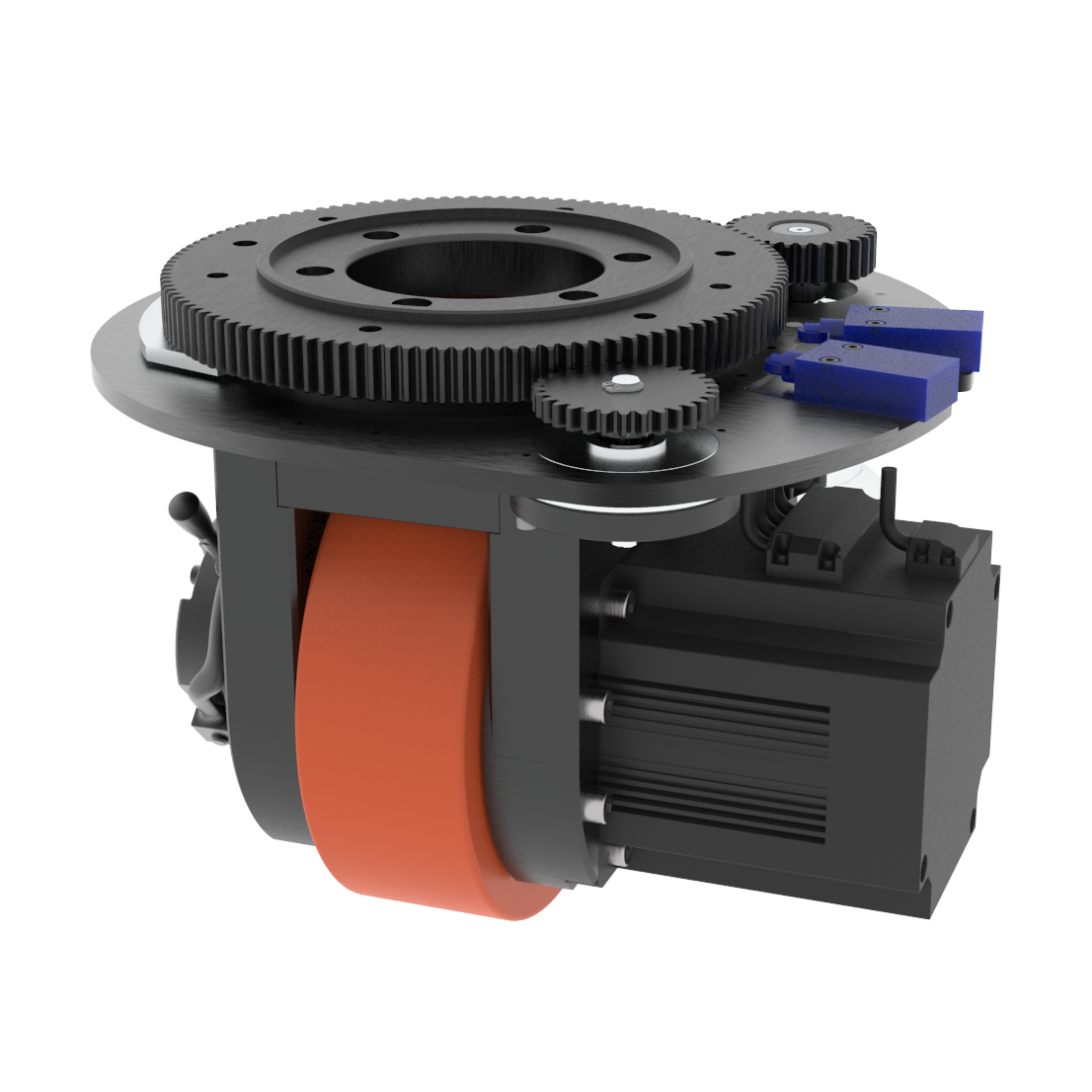

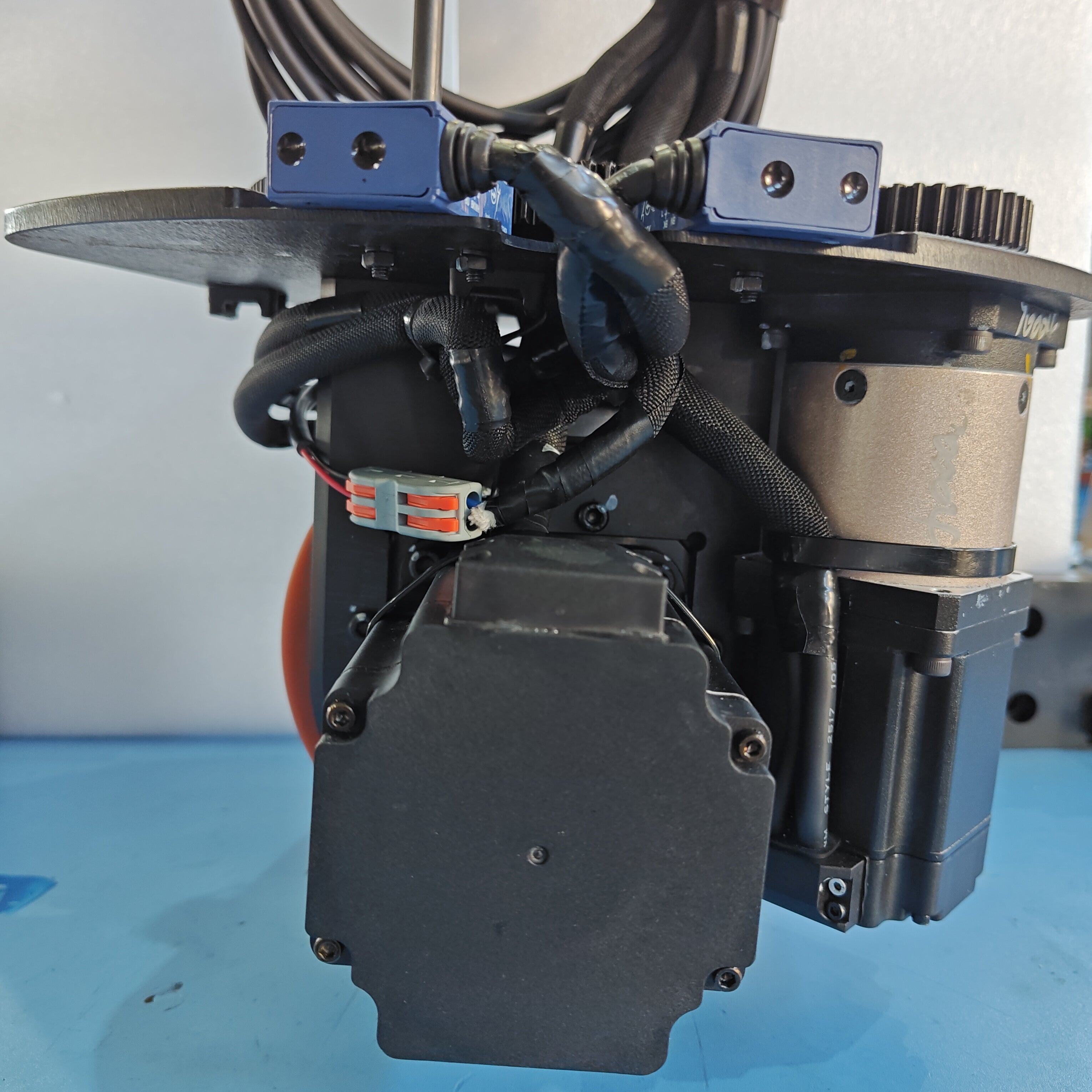

48V DC Industrial AGV Dedicated Horizontal Steering Wheel with Servo Drive & Motor

HKT AGV system features a 400W motor with 1.27Nm torque, 48V DC, and a speed of 3000r/min. It has a 150mm drive wheel, supporting up to 400kg load and 88.3m/min max speed. The steering system includes a 200W motor with 0.64Nm torque, offering precise control.

•  Locomotion system equipped with 400W motor, rated torque 1.27Nm, 48V DC voltage, rated current 10.6A, motor speed 3000r/min. The speed ratio is 16 (optional 21, 24, 28, 32), which meets the different speed and load requirements of AGV robots and ensures continuous and stable power output.
• 150mm drive wheel, maximum speed of 88.3m/min (other speed ratios are 67.3, 58.9, 50.5, 44.2m/min), load capacity of 400kg, turning radius of only 180mm, ensuring flexible operation of AGV robots in small spaces.
• The whole machine weighs 16kg, which reduces the overall weight of AGV and improves the energy efficiency and operational flexibility of AGV robots.

Steering System Performance

• 200W motor, rated torque 0.64Nm, voltage 48V DC, motor speed 3000r/min, speed ratio 1:160, providing precise control and fast response. The maximum turning speed is 112.5°/second, ensuring that the AGV robot can quickly adjust the direction of travel and improve work efficiency.
• The steering system has ±126° electronic limit angle and ±135° mechanical limit angle to ensure safe steering and avoid equipment damage. The 6Nm brake torque improves operational safety and ensures rapid braking of the AGV robot in emergency situations.

Applicable Scenarios

• The steering wheel system is suitable for various types of AGVs, and performs particularly well in scenarios that require precise control and high-load handling, such as manufacturing workshops, logistics centers, and warehouse management systems.

Horizontal Steering Wheel Specification:
