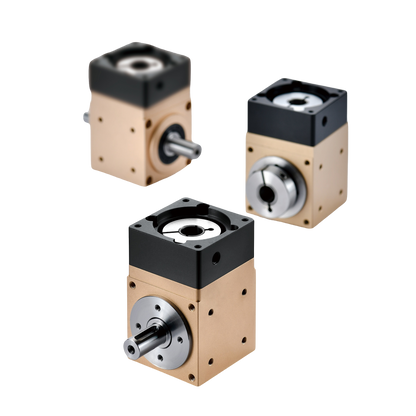

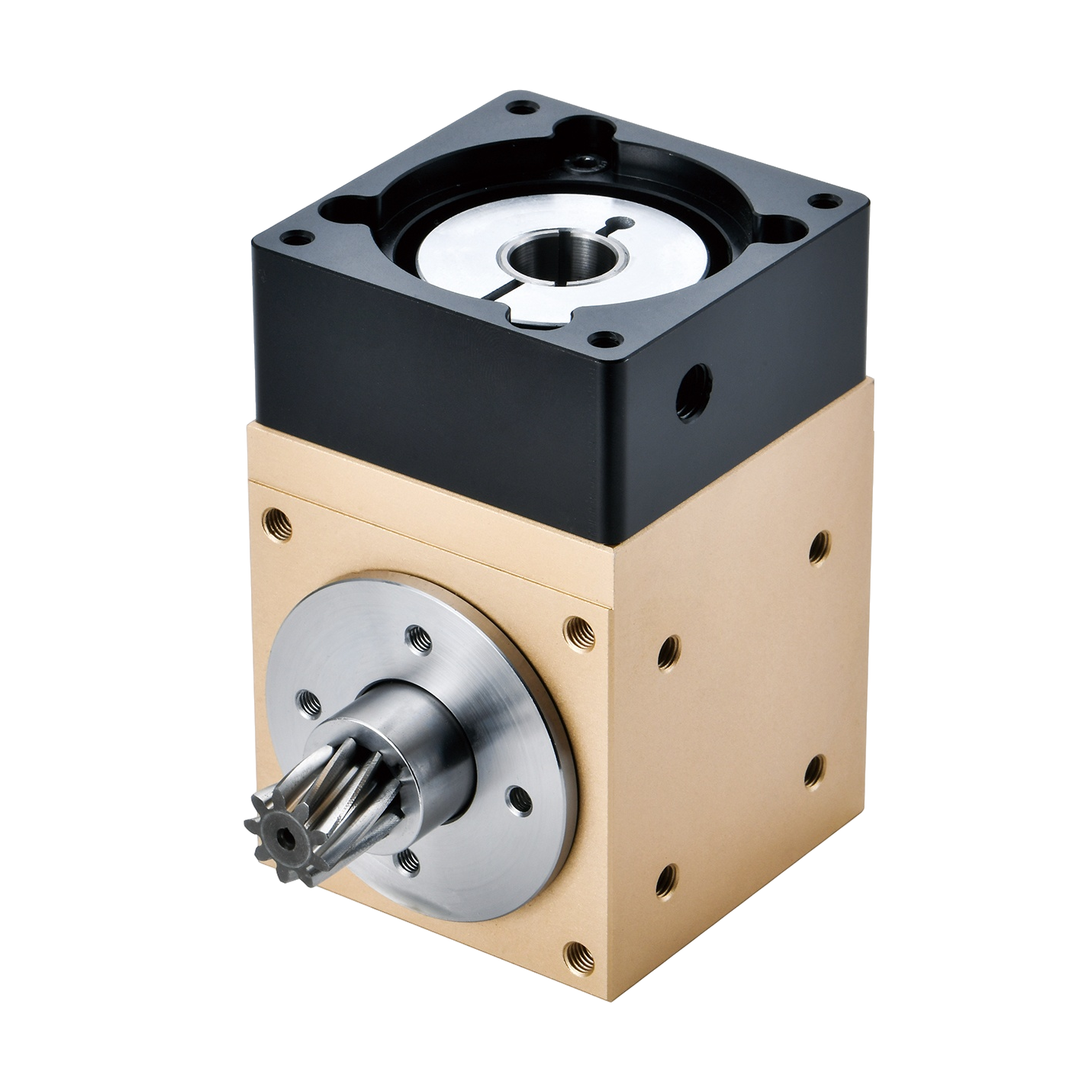

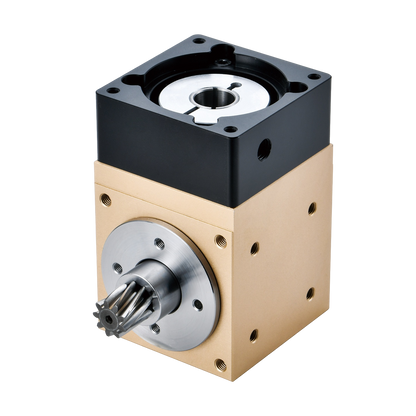

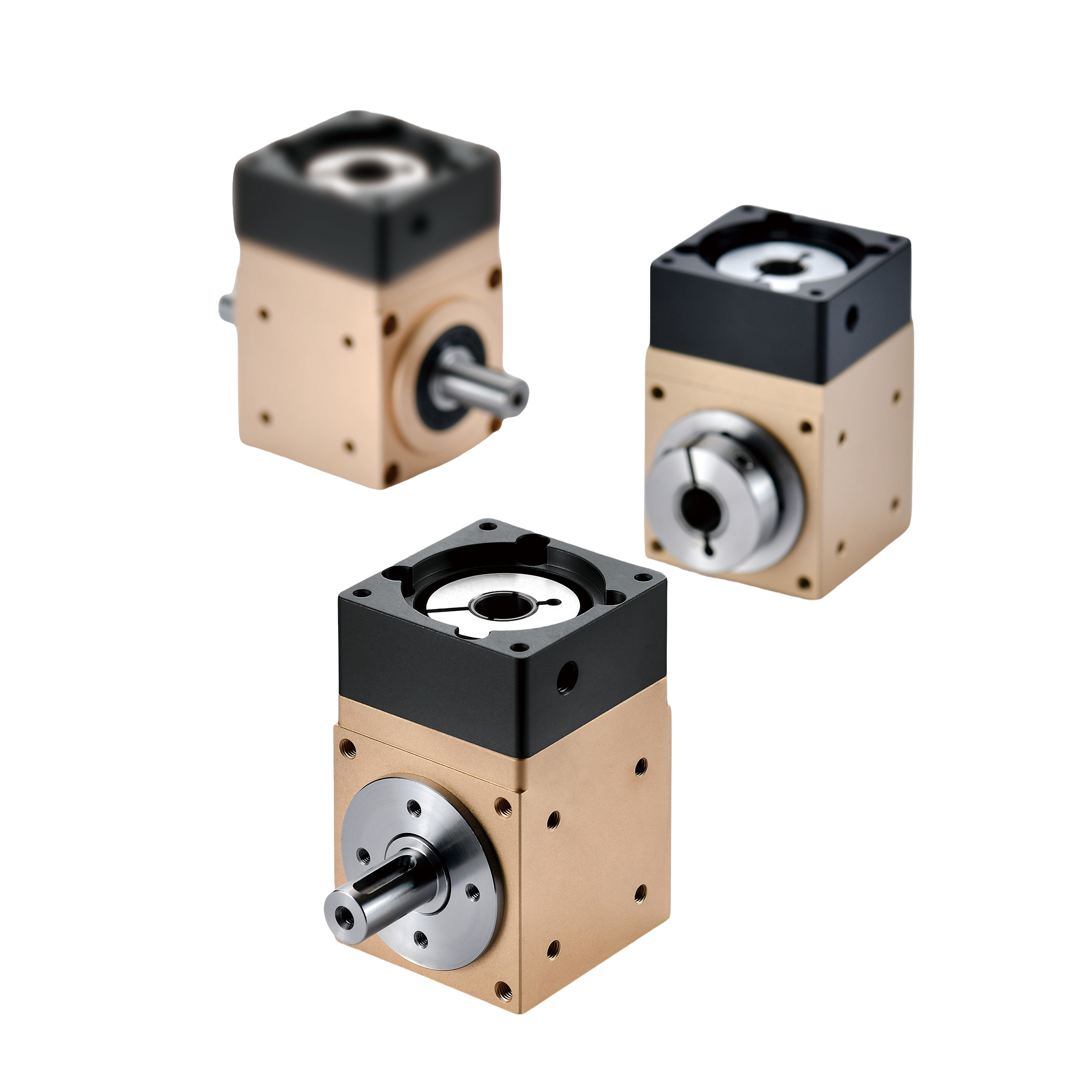

85mm Flange Compact High-Precision Right Angle Commutator
Frame Size: 85mm
Protection Class: IP65
Axial Force: 800 N·m
Radial Force: 1650 N·m
Torsional Backlash: ＜6 arcmin
Pairs well with
85mm Flange Compact High-Precision Right Angle Commutator
HKT LANETX planetary reducer features a Pratt commutator known for its maintenance-free operation, low noise, compact size, high torque, precision, long service life, and minimal backlash. With a lifespan of 20,000 hours, it operates efficiently across a wide temperature range and ensures reliable performance in various applications.
Advantage: Pratt commutator is characterized by maintenance-free operation, low noise, small volume, large torque, high precision, long service life, and low backlash.
Lifetime: 20,000 hours
Minimum Operating Temperature: -25ºC
Maximum Operating Temperature: +90ºC
Lubrication Method: Long-term lubrication
Installation Method: Any
Direction of Rotation: Output and input in the same direction
Full Load Efficiency:
- 1-Stage: 90%
- 1. Stage: 88%
- 2. Stage: 84%
| Model | Unit | AT042A | AT060A | AT085A | AT110A | Ratios | Stages |
| Rated output torque | N·m | 19.0 | 50.0 | 160.0 | 1 | 1-stages | |
| 4.5 | 25.0 | 60.0 | 140.0 | 2 | |||
| 6.0 | 16.5 | 60.0 | 3 | ||||
| 4.0 | 12.0 | 40.0 | 5 | ||||
| 4.7 | 26.0 | 60.0 | 140.0 | 6 | 2-stages | ||
| 4.9 | 27.0 | 63.0 | 148.0 | 8 | |||
| 5.1 | 28.0 | 66.0 | 155.0 | 10 | |||
| 5.3 | 29.0 | 68.0 | 160.0 | 14 | |||
| 5.5 | 30.0 | 72.0 | 165.0 | 20 | |||
| Fault stop torque | N·m | 32*Nominal torqute | |||||
| Backlash | arcmin | ≤2 | ≤2 | ≤2 | ≤3 | P1 | 1-stages |
| ≤6 | ≤6 | ≤6 | ≤7 | P2 | |||
| ≤5 | ≤5 | ≤5 | ≤6 | P1 | 2-stages | ||
| ≤12 | ≤12 | ≤12 | ≤14 | P2 | |||
| Rated input speed | rpm | 3000 | 3000 | 3000 | 2500 | ||
| Maximum input speed | rpm | 6000 | 6000 | 6000 | 5000 | ||
| Noise | dB | ≤60 | ≤62 | ≤65 | ≤68 | ||
For more information, please download our detailed documentation or contact our sales staff
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

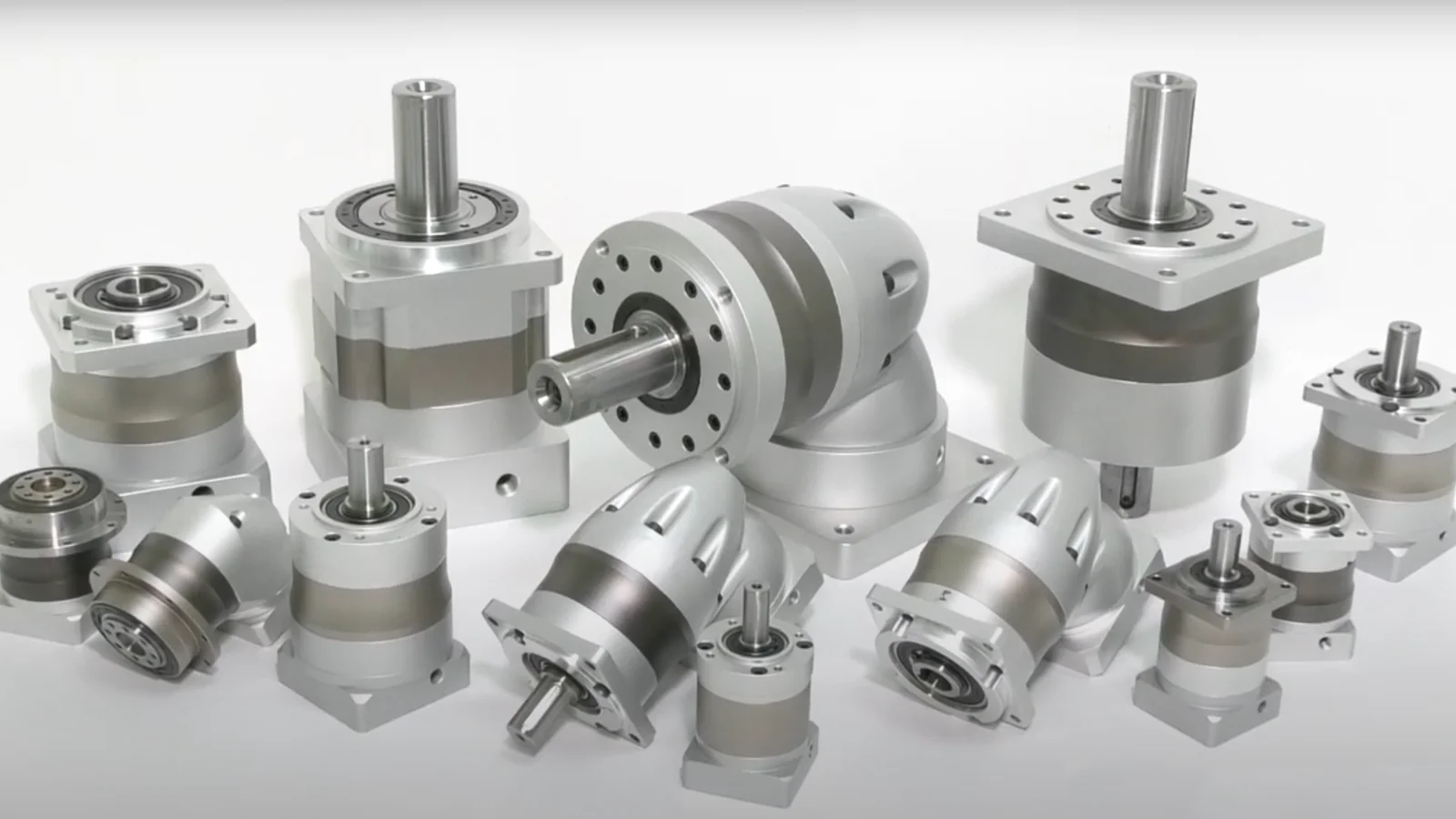

High-Torque Planetary Gearbox
