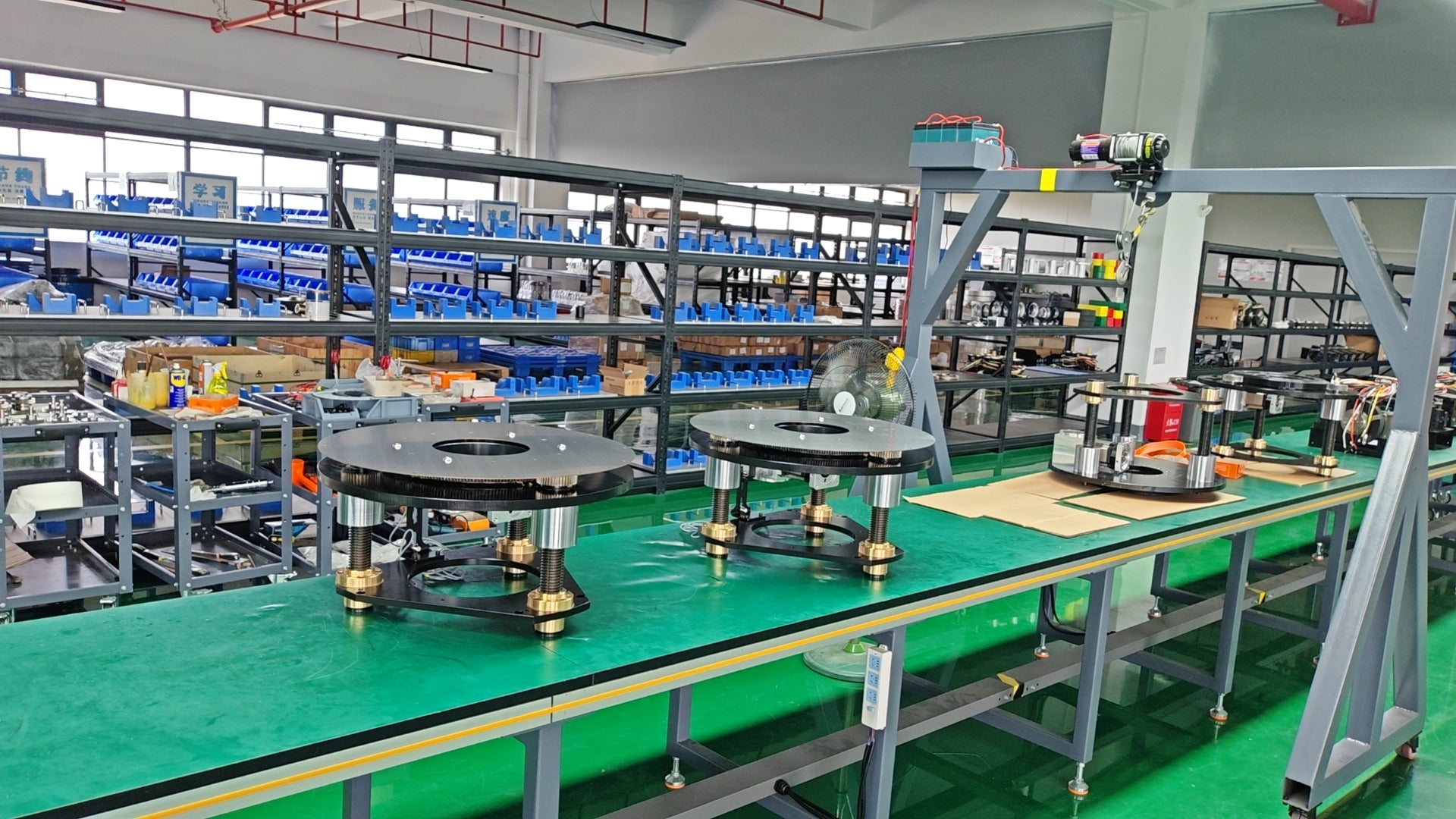

Load 500kg-1000kg AGV Lifting & Rotating Mechanism

This durable and reliable system can support a load of 1000kg with an overload capacity of 3 times and a rated life of more than 300,000 cycles, ensuring long-term stable operation, making it highly favored by AGV manufacturers. Driven by a servo motor, it provides stable and controlled lifting and rotating motions. The rotating section uses an X-type planetary reducer for quick and precise rotations, and is equipped with a rotation origin sensor for accurate positioning. With a lifting speed of 6mm/s and rotation speed of 60°/s, it improves efficiency.

Rugged and efficient lifting and rotating systems are ideal for AGV (Automated Guided Vehicle) Applications:

1. Durable and Reliable: Supports up to 1000 kg, with 3x overload capacity and over 300,000 cycles for long-term stability, making it a favorite among AGV manufacturers.

2. Stable Motion Performance: Driven by a servo motor, offering smooth, controlled lifting and rotating movements.

3. Versatile Design: Uses an X-type planetary reducer for fast, precise rotations, with a rotation origin sensor ensuring accurate positioning.

4. Efficient Operating Speed: Achieves a lifting speed of 6mm/s and a rotation speed of 60°/s, optimizing efficiency for lifting and rotating tasks.
