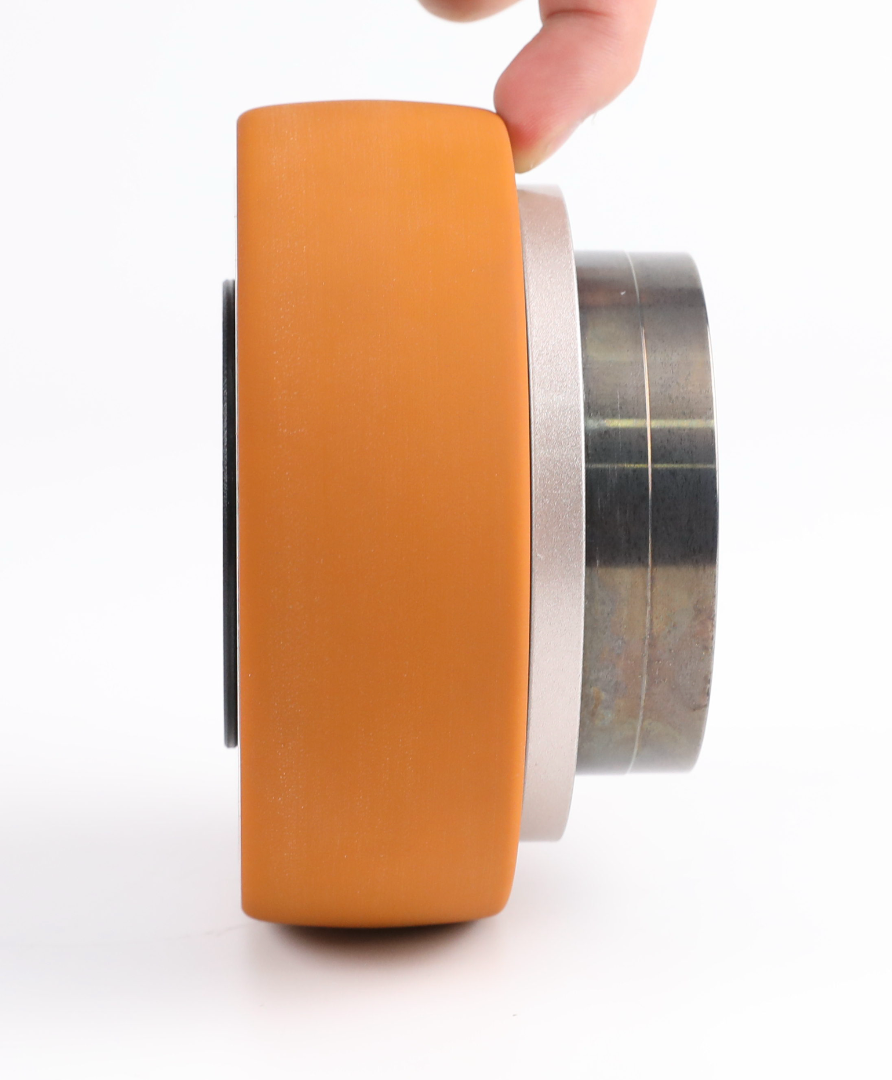

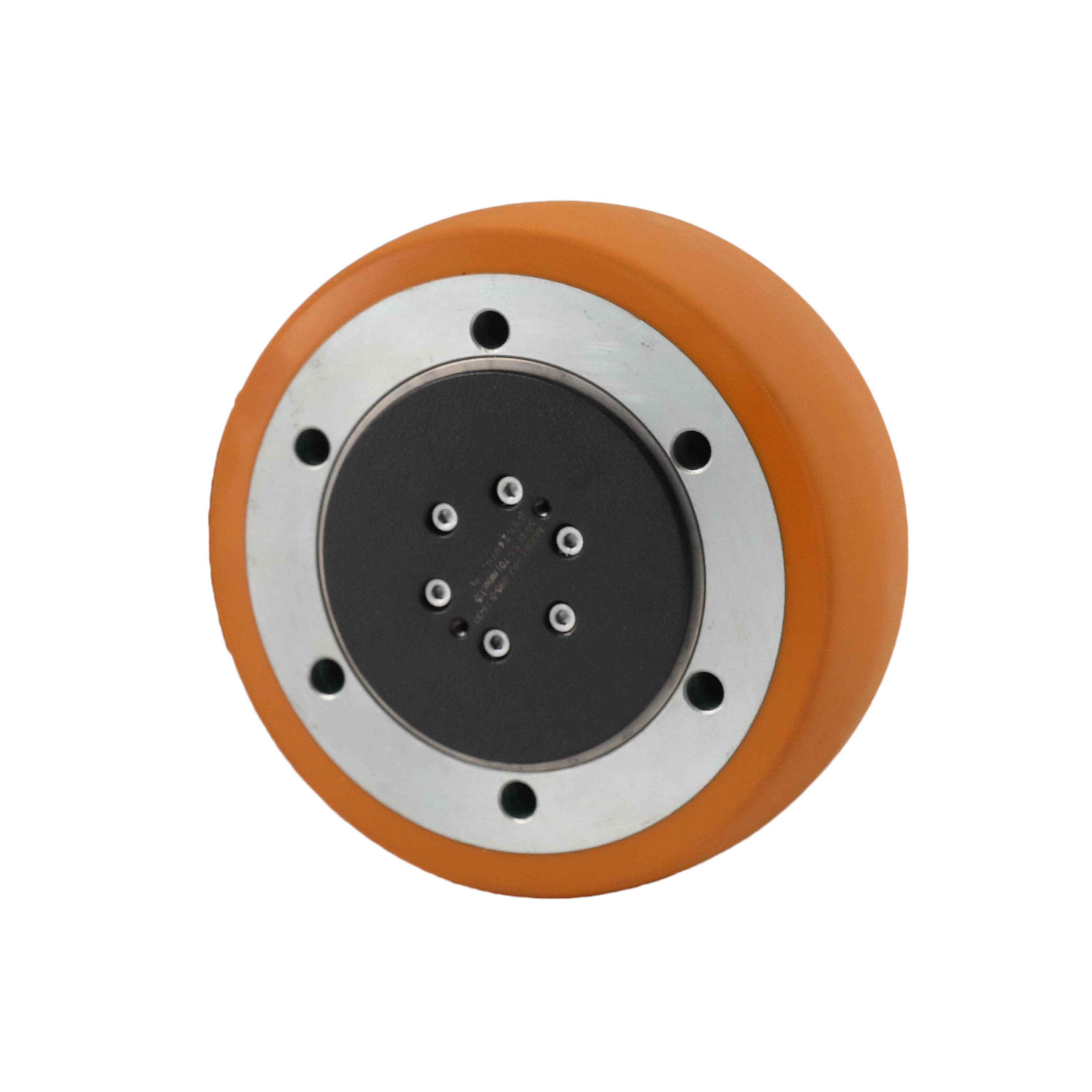

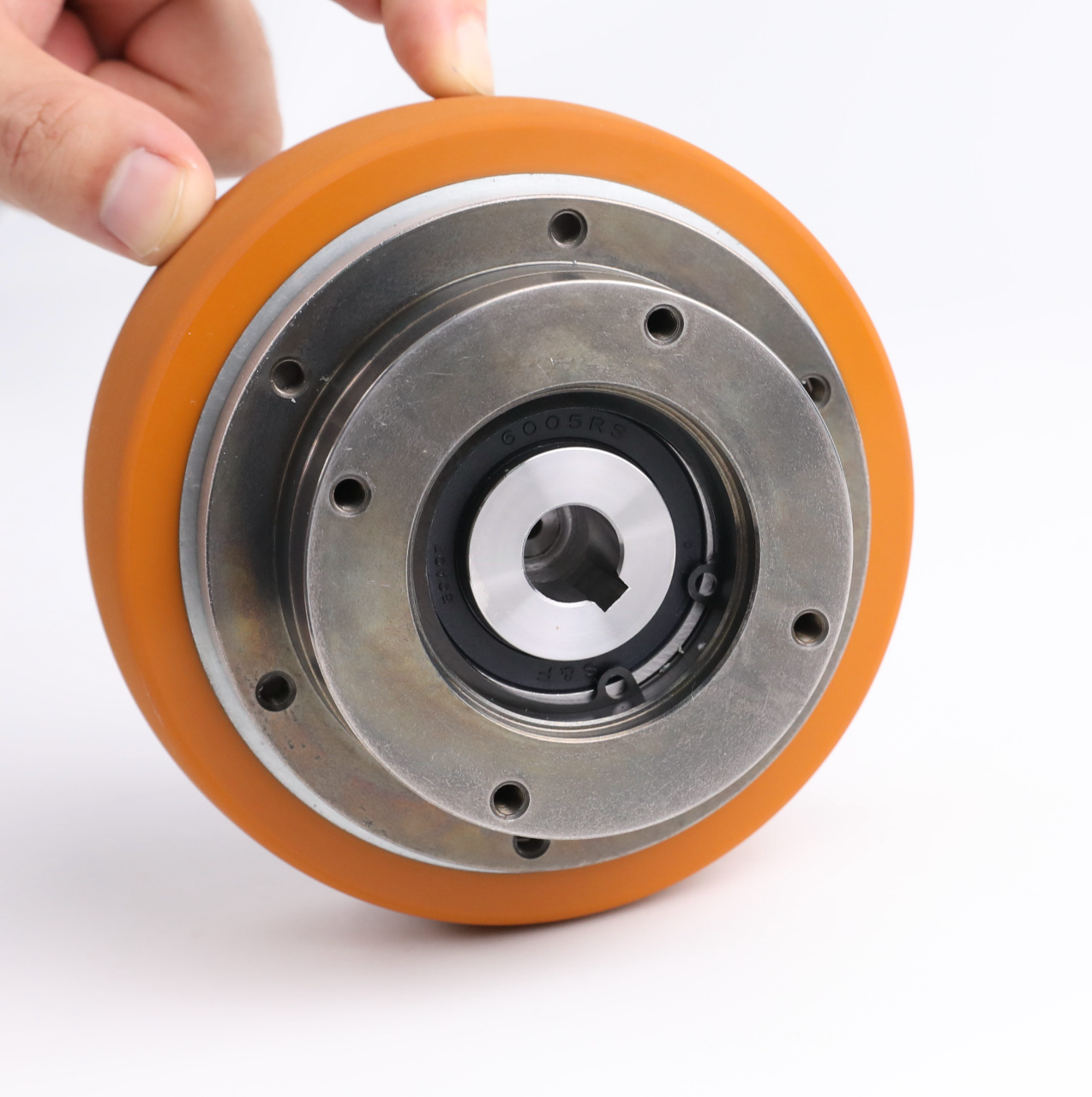

Planetary Gear Wheel 120kg Singel Wheel Load AGV Drive Wheel
Rated Load: 120kg
Drive Wheel Diameter: 125-160mm
Pairs well with
Planetary Gear Wheel 120kg Singel Wheel Load AGV Drive Wheel

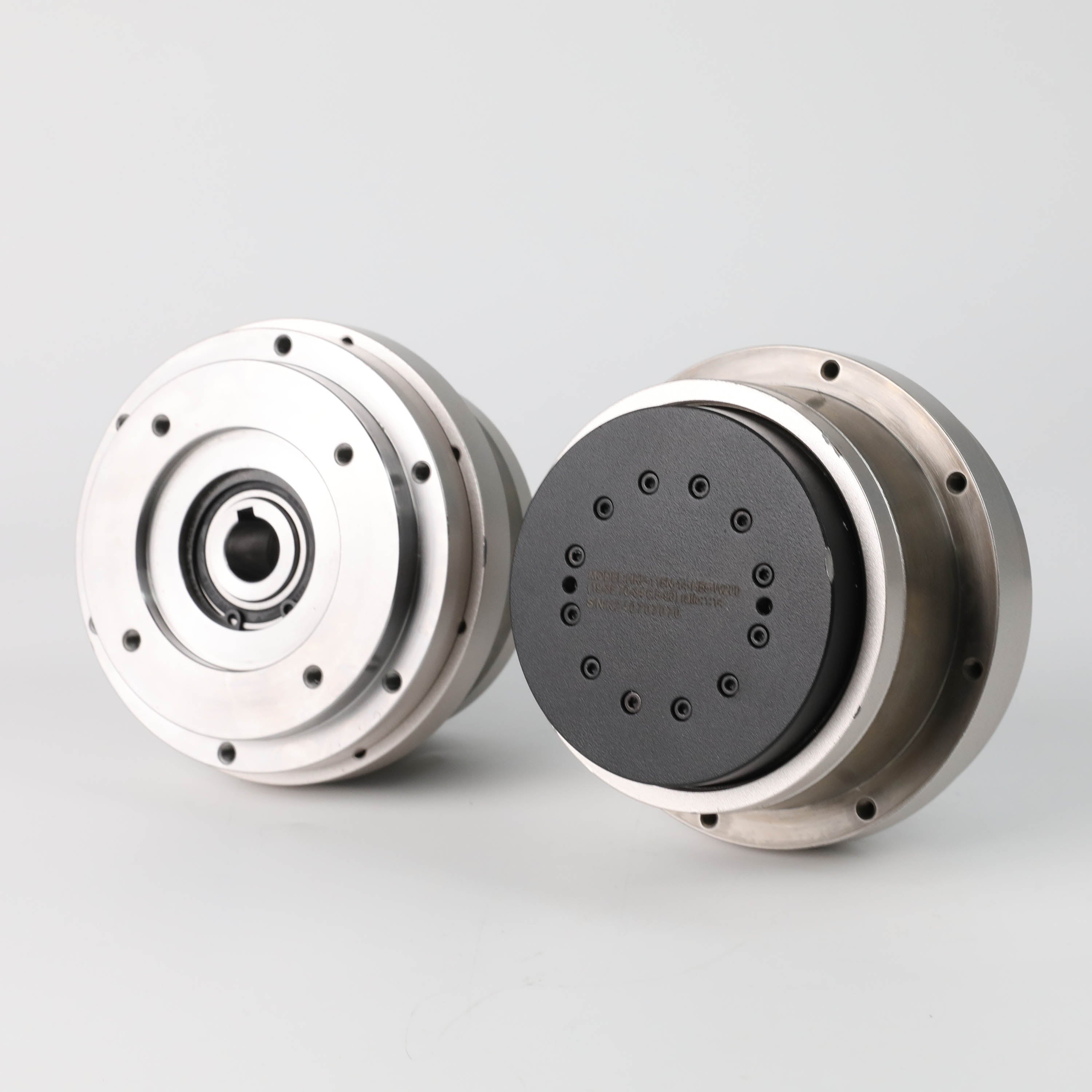

HKT wheel hub reducer designed for AGV robots adopts a planetary structure and integrated design, with the servo motor located inside the planetary wheel. It has the characteristics of compact structure, high transmission efficiency, low noise, and precise control, which is very suitable for AGV applications.
More importantly, the wheel hub reducer has strong compatibility with servo motors or other suitable rotating power sources, ensuring perfect matching and optimized performance in AGV systems. Its precise control and high efficiency have made important contributions to the smooth and reliable operation of AGV robots in various industrial environments.
| Reduction wheel model | HKF095 series |
| Outer wheel diameter: | 125-160mm |
| hardness (A): | 75±5/80±5/85±5 |
| Transmission ratio: | 2-40 |
| Rated input speed (M/min): | 3000 |
| Maximum input speed (M/min): | 6000 |
| Maximum radial load: | 1200N |
| Full load efficiency: | 92% |
| Working temperature: | -25℃ ~ +90℃ |
| Lubrication: | synthetic grease lubrication |
| Installation: | optional |
| Protection level: | IP64 |
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Customizable
Suitable for servo motors of different powers
Optional wheel diameters, tire colors, hardness, and surface treatments
Reliable QualityMature Technology
This AGV Gear wheel adopts a planetary structure and integrated design
And it has passed the market verification in large quantities, with reliable quality and mature technology
FAQs
Please read our FAQs page to find out more.
What about your lead time?
Depends on stock availability, if not in stock re-production will take about 1 month. Please contact us for stock availability.
How do I choose the right wheel?
Please provide us with the required single wheel load, wheel diameter requirement and mounting height. We will recommend the right wheel for you.
Are these wheels customizable?
It can be customized with different speed ratios, wheel diameters, and adapted motor interfaces available upon request.
How about your after-sale service?
We provide 2 years warranty service for gear wheel. If there are any quality problems, we will actively deal with them.
